The magnetic field effect on electron microscope performance is one of the most important environmental factors to consider in laboratory design. Even small magnetic field fluctuations can bend electron paths, blur atomic-scale images, and compromise quantitative data. Since these instruments are also highly sensitive to vibration, they are usually installed on ground floors. However, these levels are often shared with mechanical rooms and power distribution systems, creating an adjacency that increases the risk of electromagnetic interference. Consequently, architects play a central role in safeguarding microscope performance through careful planning and integration of EMF mitigation strategies.

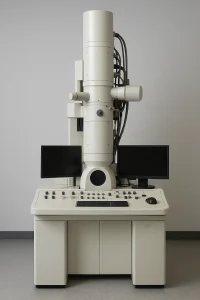

Here are five key fact items that uniquely describe the sensitivity of a TEM microscope to electromagnetic fields:
Objective Lens Vulnerability – Smallest field fluctuations blur atomic-resolution images.
Sub-Ångström Resolution – Requires <0.1 mG stability for reliable imaging.
Diffraction/Phase Contrast – Beam coherence easily disrupted by stray fields.
Long Electron Pathway – Tall column amplifies tiny beam deflections.
Environmental Isolation – Needs shielding or cancellation beyond standard design.
Â
Electron microscopes work by projecting a beam of electrons through electromagnetic lenses that focus the beam to nanometer or even sub-nanometer scales. Because electrons are charged particles, their paths are highly sensitive to external magnetic influences. Even background fields as low as 0.1 milligauss (mG) can degrade performance in high-resolution systems. To put this in perspective, Earth’s natural magnetic field is ~500 mG, but it is stable; fluctuations of only a few mG from building infrastructure can cause measurable distortions in microscope images.
In fact, Park, Pan, and Montgomery co-authored Analysis of Electromagnetic Interference Effect on Semiconductor Scanning Electron Microscope Image Distortion, which explores in detail how EMI distorts SEM images in semiconductor manufacturing. Their findings reinforce that the magnetic field effect on electron microscope systems is both quantifiable and significant, underscoring the need for architects to integrate mitigation strategies into design.
Electron Column: The column contains the electron gun and electromagnetic lenses that shape and accelerate the beam. Even small stray fields bend the electron trajectory, introducing astigmatism or blur. For high-resolution transmission electron microscopes (TEMs), a 1 mG fluctuation can shift beam alignment enough to compromise atomic-scale imaging.
Objective Lens Region: This is where the highest magnification occurs. Because resolution scales with beam stability, fields in this zone directly translate into loss of detail, reduced lattice visibility, or artifacts in atomic-resolution studies.
Scanning Coils in SEMs: In SEMs, magnetic interference causes raster distortions, where the scanned image “wobbles” or drifts. As a result, images become unusable for materials characterization.
Detectors and Electronics: Sensitive detectors such as secondary electron detectors and X-ray detectors, along with control electronics, rely on stable signals. EMF noise introduces instability, lowering the signal-to-noise ratio and making quantitative results unreliable.
Electrical Infrastructure: High-current feeders, transformers, and switchgear located adjacent to microscopy suites. Harmonic currents from modern variable-frequency drives (VFDs) exacerbate field fluctuations.
Mechanical Systems: Elevators, HVAC motors, pumps, and fans generate time-varying fields that couple into nearby lab spaces.
Transit Systems: Underground trains or nearby light rail create transient field pulses as vehicles pass.
Laboratory Equipment: Cryogenic compressors, NMR magnets, or even other microscopes can introduce local magnetic disturbances.
External Variability: Vehicular traffic, construction equipment, or fluctuating urban grid loads contribute to time-varying EMFs.
Therefore, architects must anticipate all these sources when positioning sensitive instruments.
The magnetic field effect on electron microscope performance manifests in several distinct ways:
Resolution Loss: A TEM designed to resolve atomic lattice spacings below 1 Ångström may degrade to several Ångströms in a poor EMF environment.
Image Drift and Blur: Long exposure times needed for analytical techniques such as electron energy loss spectroscopy or tomography are disrupted by fluctuating fields.
Quantitative Error: In energy-dispersive X-ray spectroscopy (EDS) or electron diffraction, even small deviations in beam stability lead to inaccurate elemental analysis.
Downtime and Recalibration: Persistent field issues force users to recalibrate daily, wasting costly research time and reducing throughput.
Ultimately, these consequences reduce reliability, increase operational costs, and frustrate researchers who depend on stable, high-resolution imaging.
Context: New TEM suite ~60 ft from Amtrak, ~260 ft from SEPTA, ~400 ft from an elevated Amtrak line.
Problem: More than 25 mG AC at 25/60 Hz and over 40 mG peak-to-peak quasi-DC from train currents were measured at the microscope location.
Mitigation: Tri-substrate passive magnetic shielding plus active compensation coils, with specialized low-profile floor coils.
Result: AC was reduced to <0.05 mG p-p in all axes without ACS; DC was reduced from 43 mG p-p to <0.10 mG p-p using nested shielding plus ACS (–28 to –50 dB depending on source/frequency).
This example demonstrates how proximity to transportation corridors can drastically affect performance. Nevertheless, it also shows that with proper mitigation, the magnetic field effect on electron microscope systems can be controlled, preserving functionality and precision.
Vitatech’s solutions are applied across a range of project types where EM-sensitive instrumentation must coexist with robust building systems:
Research Laboratories: Shielded enclosures in life sciences and materials research centers where electron microscopes sit adjacent to electrical distribution vaults.
University Campuses: Magnetic shielding incorporated into basement labs to offset proximity to underground transit systems.
Healthcare Facilities: Shielding strategies for advanced imaging suites, ensuring that diagnostic performance is unaffected by nearby electrical infrastructure.
Nanotechnology Centers: Purpose-built shielded rooms allowing for atomic-resolution TEM operation despite dense electrical and mechanical infrastructure in urban settings.
In every case, by addressing the magnetic field effect on electron microscope systems early, architects enable these facilities to support cutting-edge research without compromising accuracy.
Architectural decisions directly affect whether electron microscopes will function as intended. Room placement, adjacencies, materials, and utility routing can either amplify or mitigate interference. Consequently, collaboration is crucial.
Vitatech brings over two decades of experience bridging electromagnetic science with building design. By partnering with architects early in the planning phase, we help:
Avoid costly redesigns by identifying EMF risks before construction.
Integrate shielding seamlessly so solutions are functional yet unobtrusive.
Preserve usable space and aesthetics by optimizing design around shielding requirements.
Streamline compliance with client, institutional, and governmental standards.
Therefore, this collaboration ensures that projects not only meet technical specifications but also remain efficient, safe, and visually coherent.
As science and technology facilities become increasingly complex, the integration of EMF mitigation into architectural design is no longer optional—it is foundational. By collaborating with Vitatech Electromagnetics, architects can:
Future-proof buildings for evolving instrument requirements.
Deliver compliant, high-performance environments that meet client expectations.
Differentiate their practice by demonstrating expertise in accommodating next-generation research tools.
Ultimately, architecture and science must work together, ensuring that buildings function as enablers of precision discovery rather than barriers to performance.
Vitatech Electromagnetics specializes in understanding, measuring, and mitigating electromagnetic interference in the built environment. Our expertise helps ensure that critical facilities achieve both instrument performance and regulatory compliance. For architects, the most relevant capabilities include:
EMI/EMF Shielding: Design and implementation of shielding solutions (magnetic, electric, and RF) that protect sensitive equipment.
Magnetic Field Modeling: Early-stage prediction of field strength from building systems, power distribution, and transportation sources.
Design Integration: Collaboration to embed shielding into walls, floors, and ceilings without compromising architectural form or utility.
Standards Compliance: Alignment with international guidelines (IEEE, ICNIRP, IEC) and laboratory-specific performance criteria.
Turnkey Solutions: From site surveys to commissioning, ensuring EM-sensitive areas meet performance thresholds.
The performance of electron microscopes depends on far more than precision engineering inside the instrument—it is equally tied to the surrounding built environment. Even minor fluctuations in electromagnetic fields can compromise imaging resolution, data accuracy, and overall research productivity. For architects, this means that the magnetic field effect on electron microscope performance is not a peripheral consideration but a central design parameter when planning advanced laboratories, research facilities, and healthcare environments.
By integrating EMF mitigation strategies early in the design process, architects ensure that these critical instruments operate at their full potential while avoiding costly retrofits and delays. Partnering with experts such as Vitatech Electromagnetics allows design teams to embed shielding solutions seamlessly, maintain compliance with performance standards, and future-proof facilities for the next generation of scientific tools.
Ultimately, buildings designed with electromagnetic awareness are not just structures—they are enablers of discovery, precision, and innovation.
